An Attic Coaxial-Cable Trap Dipole for 10, 15, 20, 30, 40, and 80 Meters
John DeGood, NU3E
nu3e@arrl.net
Abstract
A coaxial-cable trap dipole antenna installed in the attic provides a surprisingly
effective solution to HF operation on the 10, 15, 20, 30, 40, and 80 meter
amateur bands at a QTH with restrictive covenants that prohibit outside
antennas.
Restrictive Covenants
When we purchased our first home in 1980 amateur radio antenna siting was
a top selection criteria. But when a job change in 1995 required
relocation, my XYL announced that it was "her turn" to choose our new QTH,
and amateur radio was not on her priority list! She chose a beautiful
new home in a development with excellent amenities for raising our family,
but it came with restrictive covenants that prohibit any outside antenna
other than a "small antenna for television reception." I feared my
HF operating days might be over.
My early HF operating attempts at the new QTH were not encouraging.
The landscaping on our new lot consisted of ornamental trees and shrubs
that were barely taller than myself. I tried a full wave horizontal
loop of nearly invisible small gauge wire which circled the house hanging
below the aluminum gutters, but its performance was disappointing and it
caused severe RFI problems, forcing me to limit operation to QRP power
levels. I next tried an inverted vee using the same stealthy wire,
with the peak supported by the house and the ends supported by ornamental
shrubs at corners of the lot. It performed as a classic "cloud warmer"
that worked for local contacts but it was a lousy DX antenna. And
the low height of the shrubs that served as end supports made mowing the
lawn look like I was practicing for a limbo contest!
Attic Installation
One day while staring at our lot I considered the attic as a possible antenna
location for the first time. Some of the positive attributes were:
-
height - the roof ridge on our 2-story home is almost 30' above ground
level. This is several times higher than any other object on our
property, and is high enough (minimum 1/2 wavelength height) for a horizontal
dipole to have a reasonably low angle of radiation on the 10, 15, and 20
meter bands.
- stealth - any antenna in the attic would be completely hidden, so it would
not violate the restrictive covenants.
- freedom from environment - an outside antenna must withstand the abuse
of wind, moisture, ice, UV, birds, squirrels, etc., but the attic provides
protection from all these failure mechanisms.
- simple construction - without environmental stresses to worry about, antenna
mechanical and electrical construction is greatly simplified!
- ease of erection and modification - as long as one is careful not to fall
through the ceiling, the attic provides easy access to the antenna in almost
any weather. However, summer work in an attic is best performed on
overcast days, at night, or in the early morning hours.
But there were negative attributes, too:
- RFI - an attic antenna may interfere with household electrical and electronic
systems due to its proximity.
- interactions with nearby objects - electrical wiring, plumbing, ductwork,
and other construction materials may adversely interact with an attic antenna.
- reduced bandwidth - if a shortened length antenna is chosen to accommodate
the space limitations of an attic installation, it can reduce the SWR bandwidth.
- RF exposure - because of the proximity to residents of the house, be sure
to conduct an RF safety evaluation.
- fire safety - be certain your antenna design and construction are appropriate
for the power level you intend to use. You don't want a trap or end
insulator to catch fire in your attic! Both my experience and the
amateur literature suggest that the antenna described here should safely
accept 100 W if carefully constructed and installed.
Our attic consists of 2x4 wood truss construction. The ridge of the
main span is approximately 44 feet long with a non-metallic ridge vent.
The roofing material is asphalt composition shingles. The siding
and soffits are vinyl. The roof is a 12" pitch (i.e. a 45 degree
angle) which results in a tall ridge height. The plumbing vent stacks
are PVC plastic. The only significant metal objects in the attic
are various runs of electrical wiring that service the 5 smoke detectors
and 3 ceiling fans installed in the second floor ceiling, and two lengths
of flexible ductwork. As attics go, I consider ours is very amenable
to the presence of an amateur HF antenna.
After consideration of the alternatives, I chose to construct a trap
dipole antenna in my attic using coaxial-cable traps. I desired multiband
capability, and selected a single trap dipole over parallel dipoles or
a hybrid design consisting of 2 or more trap dipoles in parallel.
Parallel dipoles are more difficult to tune due to interactions between
the elements. Also, antenna traps function as loading coils below
their resonant frequency and result in a shortened antenna: by using
a single dipole design with multiple traps I was able to fit 40 meter coverage
comfortably along the 44 foot main ridge of my attic roof. I included
80 meter coverage by adding a pair of 40 meters traps and making a right
angle bend at each end of the attic, continuing the 80 meter segments down
a few inches below and parallel to the slope of the roof. Since most
of the current, and hence most of the radiation, comes from the central
portion of a half-wave dipole, this is a reasonable compromise.
An antenna tuner could also be used to accomplish multi-band operation in
conjunction with a non-resonant antenna. I prefer a resonant trap dipole
design for the following reasons:
- Non-resonant antennas present high SWR which results in large losses
when coaxial cable feedline is used. These losses can be reduced
to an acceptable level by using open wire feedline. However, it would be
very difficult to route open wire feedline between my operating location
and the attic, so I wanted to use a coaxial cable feedline.
- Non-resonant antennas can produce a complex radiation pattern with sharp
peaks and nulls, e.g. when operating at 10, 15, or 20 meters on an antenna
that is an electrical half wavelength on 80 meters. The resonant antenna
I constructed produces the characteristic radiation pattern of a half wave
dipole on every band, so one need not worry about missing a contact because
the other station happens to lie in a null of a complex antenna pattern.
- Non-resonant antennas require tuning when changing bands.
- The series trap dipole construction results in a significantly shortened
antenna vs. a non-resonant wire dipole. This is a significant attribute because
of space limitations in typical attics. Adding loading coils to a non-resonant
wire dipole could achieve a similar result, however.
Coaxial-Cable Trap Construction
The clever use of coaxial-cable to construct antenna traps was first described
in the amateur literature by Johns in 1981.[1] Coaxial-cable traps
are inexpensive, easy to construct, stable with respect to temperature
variation and capable of operation at surprisingly high power levels.[2,3]
The traps used in this antenna are based on the "optimized" design graphs
derived by Sommer.[4]
Coaxial-cable antenna traps are constructed by winding coaxial-cable
on a circular form. The center conductor of one end is soldered to
the shield of the other end, and the remaining center conductor and shield
connections are connected to the antenna elements. The series-connected
inner conductor and shield of the coiled coaxial-cable act like a bifilar
or parallel-turns winding, forming the trap inductor, while the same inner
conductor and shield, separated by the coaxial-cable dielectric, serve
as the trap capacitor.
The resultant parallel-resonant LC circuit
exhibits a high impedance at the resonant frequency of the trap
and effectively disconnects everything after the trap from the antenna.
Any inner traps (which are operating below their resonant
frequency) function as loading coils and shorten the overall
physical length of the antenna.
I constructed my traps using good quality RG-58/U coax scavenged from a discarded
10BASE-2 Ethernet cable. PVC couplings were used for the trap forms:
PVC couplings are very inexpensive, readily available
in useful diameters, and can be purchased individually, whereas PVC
pipe is usually sold only in 10 foot lengths.
14 gauge solid wire was used to form "bridle wires" for
electrical termination of the coax and electrical and mechanical termination
of the antenna wire elements.
Coaxial-cable traps must be "tuned" before use. The coax turns were
spread slightly until the desired resonant frequency was reached, as
measured by a dip meter whose signal was monitored on a nearby
calibrated receiver. After adjustment the coax turns were secured
by coating with lacquer (I used Deft® brand
left over from a furniture finishing project.)
Here are several important points to keep in mind if you attempt to
build coaxial-cable traps:
- The coaxial cable length specified is the active length in
which the shield is intact. The overall length of coaxial cable
required, including the prepared ends, will be approximately 2-3 inches
longer.
- The outside diameter of the trap form is a critical dimension.
I used Schedule 40 PVC couplings as trap forms (NOT
Schedule 40 PVC pipe!) Note in Table 1 that the nominal size of the PVC
couplings represents the PVC pipe size the coupling is designed to join,
which is significantly smaller than the outside diameter of the coupling.
- Coaxial-cable traps have a relatively high Q, which results in a
relatively sharp frequency resonance. You must adjust
(i.e. tune) the traps or the antenna will not work properly,
as traps can't do their job if they don't resonate (i.e. become a
high impedance) at the correct frequency.
- If you don't have a dip meter, you can use an HF antenna analyzer,
such as those made by Autek or MFJ, to adjust the trap resonant
frequency using the procedure in the section titled
TRAP FREQUENCY MEASUREMENT at
http://www.autekresearch.com/uses.htm. With
either a dip meter or antenna analyzer you will get the most
accurate result by using the minimum coupling between the trap
and the measuring instrument which produces a discernable dip.
- Unlike traps made from a discrete inductor and capacitor,
coaxial-cable traps at resonance, i.e. in their high impedance state, exhibit a
different amount of end loading depending on which end faces the center
of the antenna. Either orientation works, but to maintain dipole symmetry
trap pairs should always be installed symmetrically. I use the easy
to remember rule, "Connect center conductor of trap coax toward center
of antenna."
Table 1. Specifications of the traps used in this antenna
band |
design frequency |
trap form |
coax length (shield intact) |
coax turns (approximate) |
actual frequency |
10 meters |
28.85 MHz |
1.375" OD (3/4" PVC coupling) |
20.25" |
4 |
28.5 MHz, 28.7 MHz |
15 meters |
21.225 MHz |
1.375" OD (3/4" PVC coupling) |
26" |
5.25 |
21.1 MHz |
20 meters |
14.175 MHz |
1.625" OD (1" PVC coupling) |
35.5" |
6 |
14.2 MHz |
30 meters |
10.125 MHz |
2.0" OD (1.25" PVC coupling) |
46.25" |
6.5 |
10.12 MHz |
40 meters |
7.15 MHz |
2.25" OD (1.5" PVC coupling) |
61" |
7.75 |
7.15 MHz |
The

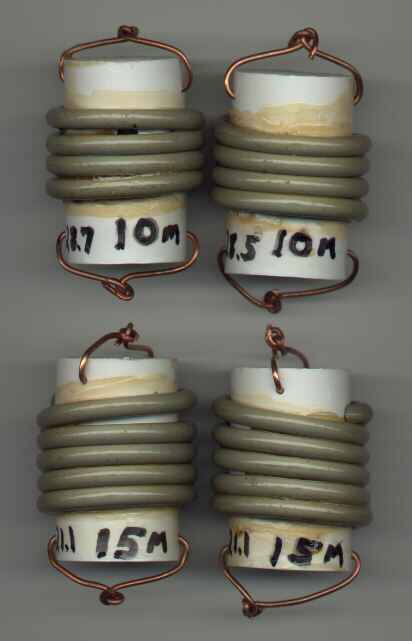

10 and 15 meter traps, wound on 3/4" PVC pipe couplings.
The
20 meter traps, wound on 1" PVC pipe couplings.

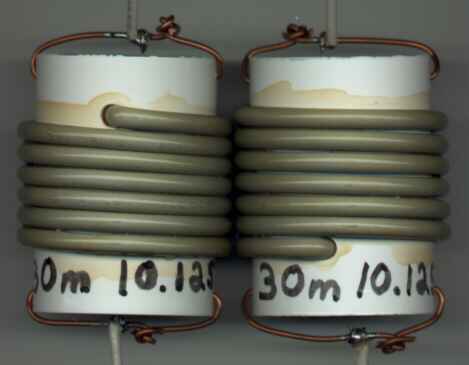

The
30 meter traps, wound on 1.25" PVC pipe couplings.

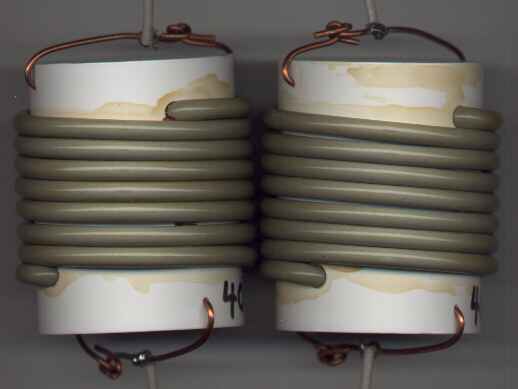

The
40 meter traps, wound on 1.5" PVC pipe couplings.
Trap Connections
I used this simple method to connect the traps to the antenna wire elements.
I soldered a short (approximately 2") wire pigtail to the bridle wire on
each end of the trap. Then the antenna wire was looped through the
trap bridle wire and secured to the pigtail using an electrical wire nut.
This made trimming the lengths of the antenna elements easy, as the connections
could be readily disassembled and no soldering in the attic was required.
When the antenna trimming was complete I used a nylon cable tie to secure
the antenna wire loop to the pigtail to strain relieve the connection.
I used 14 gauge stranded household electrical wire for the antenna elements.
This wire is very inexpensive when purchased in 500 foot spool quantities
at home centers. The insulated jacket causes the wire to have a velocity
factor somewhat lower than that of bare copper wire. This is a beneficial
attribute for an antenna intended for limited space use such as in an attic,
as it results in a shorter overall length.
Center and End Insulators
The antenna center insulator was constructed from a piece of scrap Plexiglas®
stock[*]. The center of a half-wave dipole is a current feed point
so just about any insulating material will work here. Plastic cable
ties are used to secure the antenna elements and the RG-58/U feedline to
the insulator. A rope attached to the topmost hole is used to support
the antenna center. The rope is approximately twice the height of
the attic. It passes through a screw eye secured at the peak of the
attic which functions like a pulley, allowing the antenna center to be
easily raised and lowered.
I used "real" pulleys at the ends of the attic where the 80 meter segments
were bent 90 degrees to fit within the available space. The insulated
14 gauge wire rolls easily over the "real" pulleys, allowing the antenna
to be easily lowered for adjustment. I supported the pulleys from
the top of the attic walls with a length of plastic rope, which also serves
as an insulator. The antenna end insulators (not illustrated) must
withstand high voltage in operation, so a bit of care must be taken with
their design to insure that you don't start a fire in your attic!
I fashioned mine by drilling holes at the ends of lengths of scrap plastic
rod stock. A generous length of rope was attached to each end insulator,
and screw eyes were used as pulleys to allow the antenna to be easily raised
and lowered.
[*] The original sheet of Plexiglas® was purchased to replace a
pane in the shack window so that holes could be easily drilled for the
purpose of bringing cables into the shack. When I move from this
QTH I can replace the original glass pane, leaving no trace of my antenna
installation.
Choke Balun
I constructed a choke balun near the antenna center insulator by wrapping
approximately 6 feet of the antenna coaxial-cable feedline as a single
layer winding on a scrap polyethylene food container that was approximately
4 inches diameter. I used cable ties through small holes drilled
in the container to secure the coax winding.
Some amateurs argue that a balun is not necessary when feeding a dipole
with coax, but the proximity of this antenna to other objects and the physical
constraints of attic installation make antenna symmetry unlikely in this
situation. The simple choke balun used here is trivial to construct,
and I do not feel it is worth the risk of feedline radiation problems to
omit it.
Antenna Dimensions
The final dimensions of my antenna are shown below. If you try to
duplicate this antenna you should start with longer lengths and then trim
as necessary, as the lengths will be affected somewhat by height above
ground, and in an attic installation by proximity to the building.
An antenna analyzer, such as the MFJ-259 that I used, greatly speeds the
trimming process.
If you are not interested in the 30 meter WARC band, here are the
dimensions of the antenna without the 30 meter traps. You may note
that the 80 meter end sections are significantly longer in the version
without the 30 meter traps: much of that difference may be due to the
larger percentage of the 80 meter section length that had to be bent
to fit my attic in that version.
Electrical Measurements
One of the most often quoted disadvantages of trap antennas is reduced
bandwidth. But the useful bandwidth of the coaxial trap dipole described
here is sufficient for no-tuner use over much of the 6 bands. As
the measurements in Table 2 illustrate, the antenna performs with better
than 2:1 SWR over the entire 10 and 15 meter amateur bands. Almost
all of 20 meters is usable with less than a 3:1 SWR. The 40 and 80
meter bands were trimmed for operation within the CW band segment.
Table 2. 2:1 and 3:1 SWR Bandwidth (Measured with MFJ-259 Antenna Analyzer)
amateur band |
2:1 SWR |
3:1 SWR |
10 meter (28.0-29.7 MHz) |
2.2 MHz |
4.23 MHz |
15 meter (21.0-21.45 MHz) |
640 kHz |
1.04 MHz |
20 meter (14.0-14.35 MHz) |
190 kHz |
330 kHz |
30 meter (10.1-10.15 MHz) |
100 kHz |
190 kHz |
40 meter (7.0-7.3 MHz) |
50 kHz |
110 kHz |
80 meter (3.5-4.0 MHz) |
60 kHz |
200 kHz |
Table 3 contains the resonant frequencies and SWR, 2:1 SWR limits, and
3:1 SWR limits of the antenna as measured after the final trimming of each
of the elements.
Table 3. SWR vs. Frequency (Measured with MFJ-259 Antenna Analyzer)
SWR |
10 meter band |
15 meter band |
20 meter band |
30 meter band |
40 meter band |
80 meter band |
3 |
27.17 MHz |
20.64 MHz |
14.00 MHz |
10.05 MHz |
7.06 MHz |
3.56 MHz |
2 |
27.70 MHz |
20.83 MHz |
14.07 MHz |
10.09 MHz |
7.09 MHz |
3.64 MHz |
resonance |
28.65 MHz @ 1.0 52 ohms |
21.14 MHz @ 1.3 54 ohms |
14.16 MHz @ 1.3 44 ohms |
10.13 MHz @1.6 82 ohms |
7.12 MHz @1.8 35 ohms |
3.67 MHz @1.9 39 ohms |
2 |
29.90 MHz |
21.47 MHz |
14.26 MHz |
10.19 MHz |
7.14 MHz |
3.70 MHz |
3 |
31.40 MHz |
21.68 MHz |
14.33 MHz |
10.24 MHz |
7.17 MHz |
3.76 MHz |
On-The-Air Performance
I finished installing this antenna on a Saturday. The next morning
I connected my Heathkit HW-8 QRP rig and answered the first CQ I heard,
which was an SM5 (Sweden) station on 15 meters. He responded to my
call and we had a nice QSO, with solid copy on every exchange. I
was running 2 watts output. I've had similar results on the other
bands as well.
The performance of this attic coaxial-cable trap dipole doesn't compare
to the 10-15-20 meter Yagi and 45 foot tower I enjoyed at my former QTH,
but it continues to surprise me with just how well it does work.
I have found the SWR bandwidth adequate for no-tune operation with my transceiver
across the entire 10, 15, 20, and 30 meter bands, and the CW segment of
40 and 80 meters. I experienced no RFI problems at QRP power levels,
but I did experience serious RFI problems with our stereo receiver at QRO
(100 Watt) output power on 40 meters that I remediated by wrapping its
power and surround speaker cables around split core "snap on" filter chokes
(Radio Shack 273-104).
Your Mileage May Vary
Although many hams succeed with attic antennas, I know several who have
tried attic dipoles and were disappointed with their performance.
Perhaps my attic is more "antenna friendly" than theirs, or perhaps other
factors conspired against them. I do hope that this story will inspire
others with restrictive covenants (or restrictive spouses!) to not give
up. This antenna has made it possible for me to operate a satisfying
HF station in spite of the restrictive covenants imposed on my dwelling.
Good luck, and I hope to hear you on the air soon!
References
[1] R. H. Johns, "Coaxial Cable Antenna Traps," QST, May 1981, pp.
15-17.
[2] G. E. O'Neil, "Trapping the Mysteries of Trap Antennas," Ham
Radio, Oct 1981, pp 10-16.
[3] D. DeMaw, "Lightweight Trap Antennas -- Some Thoughts," QST,
June 1983, pp. 15-18.
[4] R. Sommer, "Optimizing Coaxial-Cable Traps," QST, Dec 1984,
pp. 37-42.
[5] J. Grebenkemper, "Multiband Trap and Parallel HF Dipoles -- A Comparison,"
QST,
May 1985, pp. 26-31.
[6] D. Kennedy, "Coaxial-Cable Traps", QST, August, 1985, p.
43.
[7] M. Logan, "Coaxial-Cable Traps", QST, August, 1985, p. 43.
Frequently Asked Questions
Since posting this web page, dozens have written me with
questions about my antenna or to report that they successfully
constructed their own trap dipole after reading this paper.
Below are the most frequently asked questions I have received:
- Can one add the 12 and 17 meter WARC bands?
See Appendix - Why Aren't 12 and 17 Meters Supported? below.
- Can 80 meters be deleted? Can 80 meters and 40 meters be deleted?
Yes. Remember that antenna traps become a high
impedance at their resonant frequency, so the trap essentially becomes an
insulator at resonance and everything after the trap is disconnected from
the antenna.
To delete 80 meters, simply omit the 40 meter traps and everything after
them, placing the end insulators where the 40 meter traps used to be,
and you'll have a 10/15/20/30/40 antenna.
The dimensions of the remainder of the antenna will be unaffected except
that the 40 meter segment lengths might need to be lengthened slightly
due to the removal of the end loading provided by the 40 meter traps.
Similarly, to delete both 80 and 40 meters simply omit the 30 meter
traps and everything after them, placing the end insulators where
the 30 meter traps used to be, and you'll have a 10/15/20/30 antenna.
The dimensions of the remainder of the antenna will be unaffected except
that the 30 meter segment lengths might need to be lengthened slightly
due to the removal of the end loading provided by the 30 meter traps.
- Can this antenna be installed outdoors?
Yes, however you may want to better weatherproof the connections,
e.g. prevent water infiltration into the ends of the coax used for
the traps and replace the wire nuts with soldered connections.
[Note: I know one Southern New Jersey ham who made no effort to
weatherproof his homemade outdoor coaxial cable trap dipole.
He reports that it still works great after more than 10 years of
exposure to the elements!]
If you are in a region where ice or wind loading are likely
you may also want to improve the mechanical strength, e.g. use
more substantial center and end insulators.
- Can this antenna be used in a vertical orientation?
Yes. For example, Gareth KH6RH constructed a 10/15/20 version of this
antenna and hung it vertically in a tree near his appartment building. He
wrote:
"Not really having a good spot to hide a horizontal dipole for hf, vertically
up in the tree works great. SWR is very reasonable, way under 2:1 where I
stray. It's so nice to have 3 bands and no tuner on one antenna.
I did have a single delta loop in the tree tuned for 10m, but after the tree
trimming, it became too noticable."
- Can this antenna be used in an "inverted vee" orientation?
Yes. Since it is electrically a half wave dipole on each band it will have
a similar radiation pattern to a full size inverted vee hung at the same elevation.
Below is an excerpt of an e-mail from KH6RH which I received
several months after he first wrote about orienting a 10/15/20 meter version
of this antenna vertically:
"Not being one to sit still for long, I stared at my tree outback long
enough to visualize I can mount the CTD [coaxial-cable trap dipole]
horizontally, inverted vee style, and have it still "hidden"
to the untrained eye. You know what, John, it works even better.
I've been copying Europe, Asia, NA, SA, and Africa with this setup.
I run the NCDXF beacon tracking program, and can hear the ZS6 beacon pretty
much every day, on 20, 15, & 10m. Yes, the other QTH's come in too, but ZS6
being on the complete opposite side of the earth from KH6 makes it extra special.
So you can imagine, hamming has been a lot of fun the last couple of months.
Yes, the CTD does work vertically, but horizontally seems to work better,
by the lobe of my ear, anyway. SWR is a tad higher on all 3 bands, but from
what I've been hearing, it doesn't seem to affect performance."
- Why are the traps resonant at the center rather than at or below the
lower edge of the band of interest, as in some other trap antenna designs?
Modeling suggests that a fractional dB increase in gain is possible with
a lower resonant trap frequency (e.g. see the discussion
The Effect of Trap Resonant Frequency on Performance in
http://www.cebik.com/trapg.html.)
Unfortunately, this practice reduces the isolation provided by
a trap at resonance which can make pruning the elements more difficult.
It also raises the feedpoint impedance. I believe these disadvantages outweigh
the insignificant theoretical improvement in antenna gain.
I did not include 12 and 17 meters in the series trap dipole described above
because the loading effect of the 10 meter traps when operating on 12 meters
would require the length of the 12 meter elements to be negative in order to
achieve resonance.
Similarly, the loading of the 15 meter traps when operating on 17 meters
would require negative length 17 meter elements.
If operation on the 12 and 17 meter WARC bands is desired, one could
construct a second trap dipole for those two bands using a pair of traps
resonant at 12 meters. The inner elements (approximately 112 inches each)
would form a full size half wavelength 12 meter dipole. The length of the
outer (17 meter band) elements would be reduced by the loading effect of the
12 meter traps. In Table 4 below I include the dimensions of 12 meter traps
that could be used in the construction of such an antenna.
Table 4 also includes dimensions for 17 meter traps. These
would not be used for a 12/17 meter dipole, but are included for completeness
in case one is interested in constructing another band combination,
e.g. a trap dipole covering the 12/17/30 meter WARC bands which would require
a pair of 12 meter traps and a pair of 17 meter traps.
Table 4. Specifications of traps for 12 and 17 meter amateur bands
band |
design frequency |
trap form |
coax length (shield intact) |
coax turns (approximate) |
12 meters |
24.94 MHz |
1.375" OD (3/4" PVC coupling) |
22.7" |
4.4 |
17 meters |
18.118 MHz |
1.625" OD (1" PVC coupling) |
29.2" |
4.9 |
A 12/17 meter dipole could be fed with a second feedline or
alternatively, it could be connected in parallel with the
10/15/20/30/40/80 dipole described in the main section of this paper.
I have not tried or modeled the parallel connection so I do
not know what interaction, if any, would occur between the two antennas.
Revision History
29 Jun 2010 |
Clarified that the listed coax length is the "active" length in which
the shield is intact. |
08 Sep 2003 |
Clarified trap connection illustration and added FAQ regarding trap frequency
relative to band of interest per suggestions by Will W1ZRV. |
26 Aug 2002 |
Add inverted vee testimonial and trap construction hints. Reverse trap form
dimensions to emphasise OD rather than nominal size of PVC coupling. |
24 Aug 2002 |
Add appendix regarding 12 and 17 meters, cutaway illustration of trap conections,
paragraph comparing a trap dipole to a non-resonant antenna plus antenna tuner,
paragraph on trap orientation, FAQ section, and other minor changes. |
30 Nov 1999 |
Restore dimensions of antenna without 30 meter coverage. |
06 Apr 1999 |
Added 30 meter coverage. |
03 Jan 1999 |
Added 80 meter coverage. |
10 Dec 1998 |
Original version for 10, 15, 20, and 40 meters. |
